Monib Stainless is a manufacturer and supplier located in Safat, Kuwait, providing high-quality stainless steel products. With a focus on excellence and innovation, the company offers a full range of stainless steel flanges, including versatile Stainless Steel 310 Flanges. Among such superior strengths along with corrosion resistivity and other durability features of Stainless Steel 310 Flanges, the said product finds extreme applications in major industries such as petrochemical and others. Monib Stainless manufacturers with accuracy coupled with top notch customer services with a focus toward being the undisputed leader that provides the highly reliable stainless-steel products from the Kuwait.
Stainless Steel 310 Flanges are formed of an alloy that primarily consists of iron, with a high chromium content of about 25% and a nickel content of approximately 20%. They thus possess excellent oxidation resistance as well as strength at elevated temperatures. The composition further includes trace amounts of carbon, manganese, silicon, and sulfur. This grade is exceptional in its heat and corrosion resistance; hence it finds application in environments such as furnaces and kilns where working temperatures reach appreciable heights. Its mechanical properties include tensile strength at 515 MPa, yield strength at 205 MPa, and elongation of 40%. It is well weldable and resistant to temperature up to 1100°C.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 310 | 7.9 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We provides Stainless Steel 310 Flanges- Monib Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Monib Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

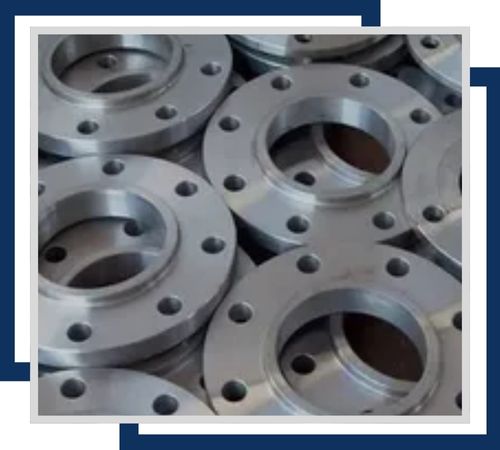

SS 310 socket weld flanges are stainless steel components designed for secure, high-strength connections in piping systems. They provide excellent resistance to high temperatures and corrosive environments, ensuring durability and reliability.

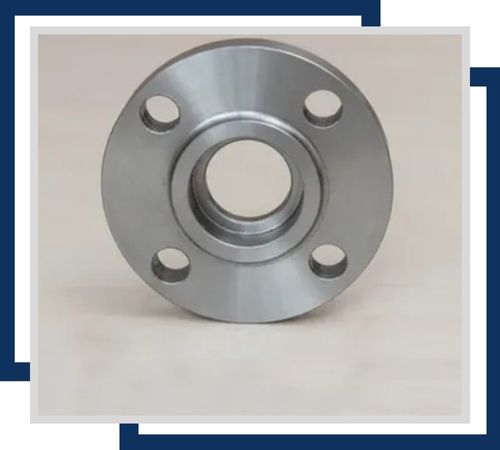

SS 310 ring-type joint flanges are stainless steel fittings featuring a precision-machined groove for high-pressure sealing. They provide exceptional resistance to high temperatures and corrosive environments, ensuring reliable, leak-proof connections.

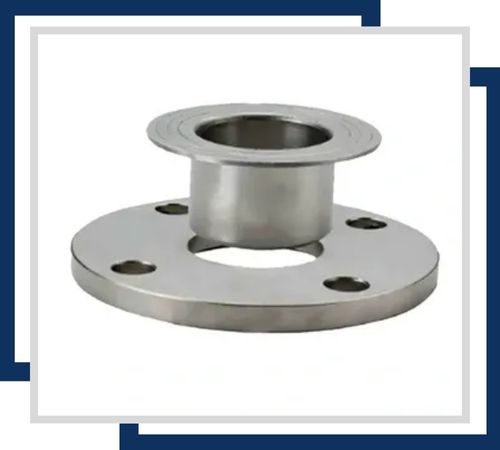

SS 310 forged flanges are robust stainless steel components manufactured through forging for enhanced strength and durability. They offer excellent resistance to high temperatures and corrosive environments, ensuring reliable performance in demanding applications.
Stainless Steel 310 flanges are widely used in high-temperature and corrosive environments because of their excellent oxidation and corrosion resistance. The stainless steel 310 flanges are commonly found in petrochemical, chemical processing, and power generation industries. They are the best choice for applications that have high heat levels, such as furnaces, heat exchangers, and reactor vessels. The 310 stainless steel flanges offer very high strength with high strength for scaling resistance properties at high elevated temperatures up to 1100°C or 2012°F. Such flanges find application in an oil and gas industry, along with applications to the marine system where higher standards of corrosion resistant are expected as compared to pipes.
