Monib Stainless is a reputable manufacturer and supplier of Stainless Steel 316H Forged Fittings based in Safat, Kuwait. They’re well-known for providing high-performance products that are specifically designed to thrive in tough industrial settings. With a keen emphasis on precision, durability, and adherence to international quality standards, the company offers forged fittings that perform exceptionally well in corrosive, high-temperature, and high-pressure situations. Their state-of-the-art manufacturing facilities and rigorous testing processes guarantee that each 316H forged fitting delivers outstanding reliability and a long lifespan. Monib Stainless proudly supports industries like petrochemical, oil & gas, power generation, and chemical processing, ensuring their products meet both global standards and the unique needs of their customers.
Stainless Steel 316H Forged Fittings are crafted with a higher carbon content, which boosts their strength and creep resistance when exposed to high temperatures. Typically, they contain chromium, nickel, and molybdenum, all of which play a key role in providing outstanding corrosion resistance, stability against oxidation, and enhanced mechanical integrity. These fittings are known for their impressive tensile strength, excellent yield properties, and remarkable hardness, making them ideal for thermal processing and high-stress situations. The added carbon content helps maintain structural stability, while molybdenum improves resistance to pitting and crevice corrosion, ensuring they perform reliably even in tough and changing operating conditions.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for our stainless steel 316H lattice fittings through rigorous testing and certification. Each device undergoes extensive testing, including tensile, hardness and corrosion resistance tests. We offer certificates of compliance, ensuring our fittings meet international industry standards for reliability and performance.

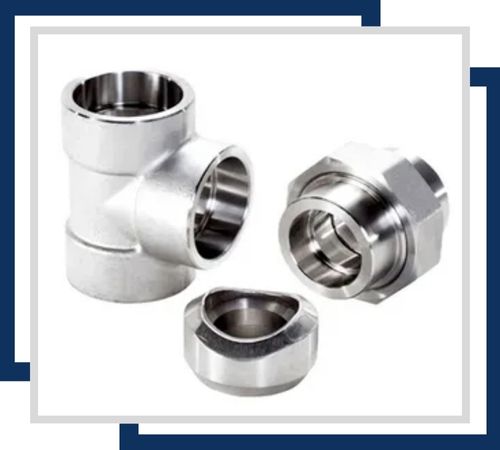

Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.

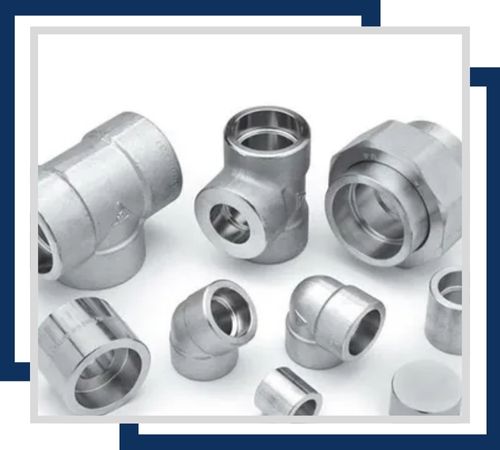

Offering excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.
The Stainless Steel 316H Socket Weld 45 Degree Elbow combines corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

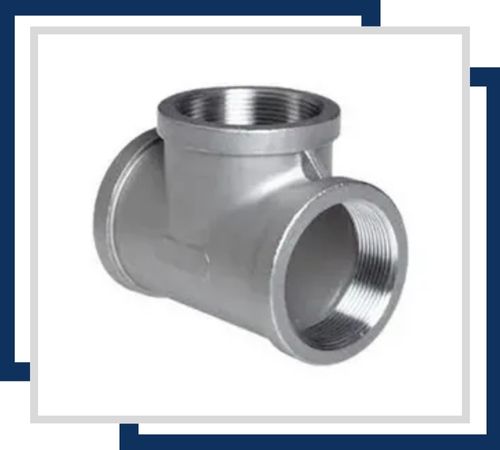

Featuring excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.

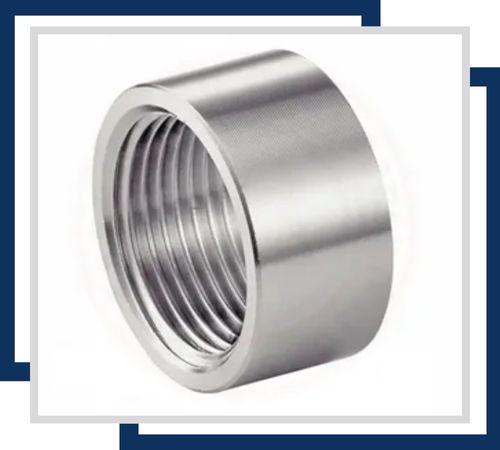

The Stainless Steel 316H Threaded Half Coupling provides strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.

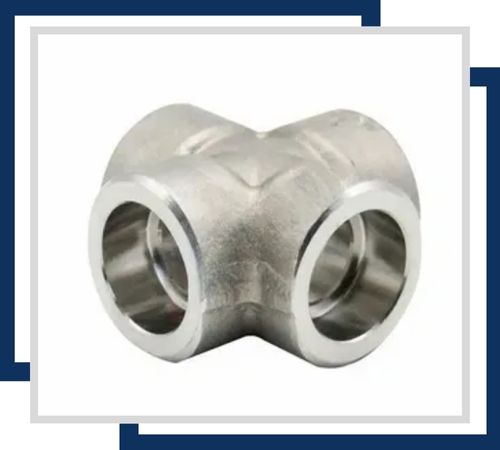

Known for its superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
Stainless Steel 316H Forged Fittings are a go-to choice in industries that need reliable performance even in the toughest conditions. They’re perfect for high-temperature applications found in petrochemical plants, refineries, and chemical processing facilities. Thanks to their corrosion-resistant features, these fittings are also great for marine settings, desalination plants, and offshore platforms. You’ll find them in boilers, heat exchangers, pressure vessels, and superheater systems where strength and thermal stability are crucial. Industrial piping systems that deal with corrosive fluids or gases depend on 316H forged fittings for secure connections, long-lasting durability, and dependable operation in demanding environments.
