Monib Stainless is a prominent manufacturer and supplier in Safat, Kuwait, catering to high-class stainless steel product ranges. Established for quality commitment, this company offers a wide array of industrial solutions, including stainless steel 316L valves that are corrosion resistant and strong in strength and robustness, thus exhibiting better performance with reliability in their varied needs by the clients.
Stainless Steel 316L valves are composed primarily of iron, with high amounts of chromium (16-18%) and nickel (10-14%) and a low carbon content (≤0.03%). The alloy also contains molybdenum (2-3%), which enhances corrosion resistance. Mechanical properties include excellent tensile strength (485 MPa), yield strength (170 MPa) and elongation (40%). They offer exceptional corrosion resistance, especially against chlorides, making them ideal for marine, chemical and food processing industries. The low carbon content improves weldability, reducing carbide precipitation.
| 316L Stainless Steel Valves Specification | |
|---|---|
| Specifications | ASTM A276, A351, A494, A961 / ASME SA276, SA351, SA494, SA961 |
| Temperature Rating | PTFE 450F,(232C)/ Grafoil 700 F(371C) |
| End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female |
| Working Pressure | Up to 6000 PSIG, valves are also available that can handle higher pressure |
| Pressure rating | 150#,300#,600#,800#,1500# |
| Grade | C (MAX) | Si (Max) | Mn (Max) | P (Max) | S (Max) | Cr | Mo | Ni | N (Max) |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/15.00 | 0.10 |
| Grade | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| 316L | 170 | 485 | 30 | 50 | 217* | 95* |
Contact us to get a quick quote for your requirement.

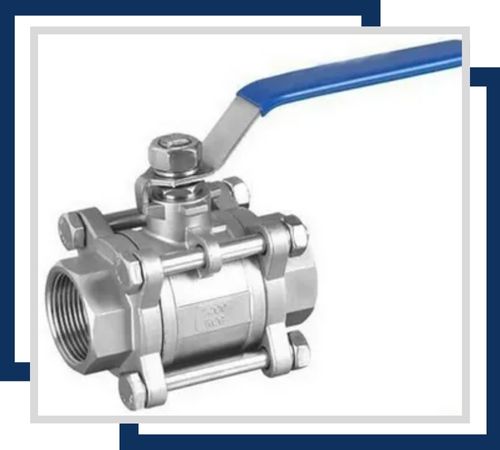

Stainless Steel 316L valves, available in sizes from 1/4″ to 12″, offer exceptional corrosion resistance and low carbon content. Ideal for use in sensitive and high-purity applications, they ensure reliable performance.

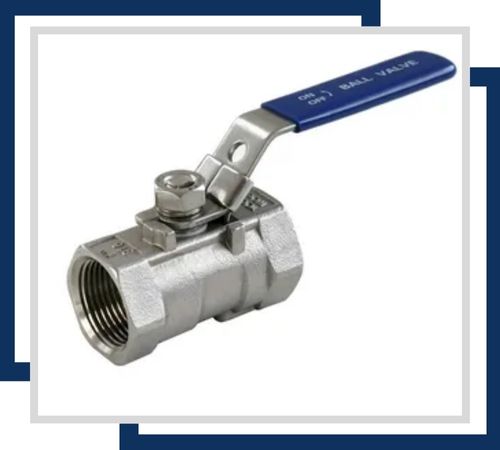

Stainless Steel 316L ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with superior corrosion resistance. They are suitable for handling aggressive chemicals and high-pressure environments.

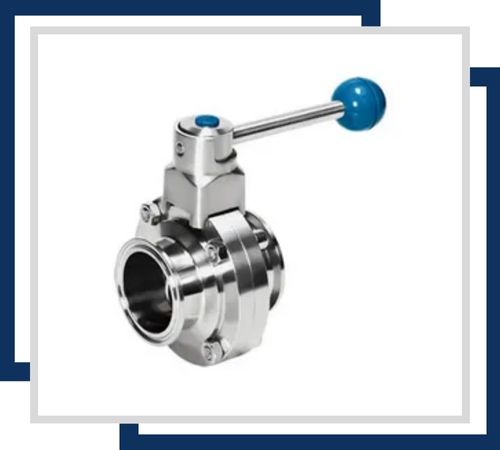

Stainless Steel 316L butterfly valves, sized from 2″ to 12″, offer efficient flow regulation with excellent corrosion resistance. Their low carbon content enhances performance in critical applications, including chemical and pharmaceutical industries.

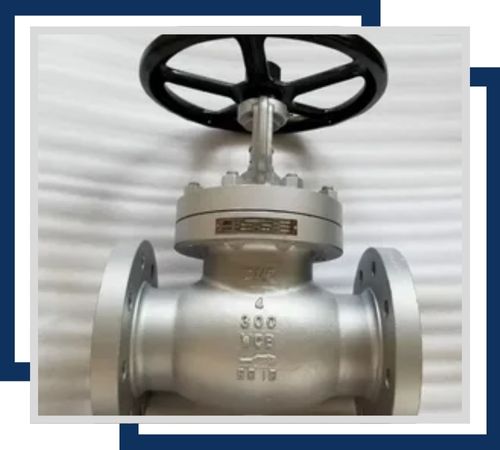

Stainless Steel 316L globe valves, available from 1″ to 12″, deliver precise flow control with high corrosion resistance. Ideal for high-purity and high-temperature applications, they ensure long-lasting durability and reliability.

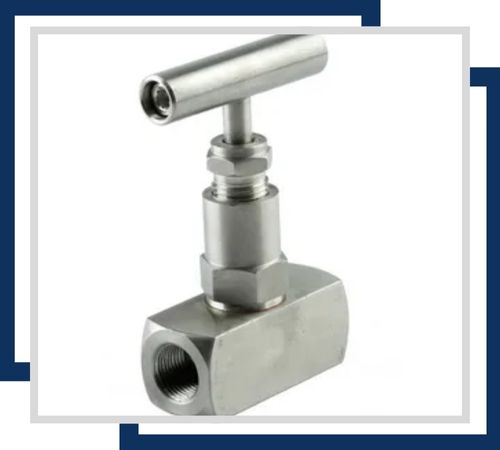

Stainless Steel 316L needle valves, sized from 1/4″ to 2″, provide precise flow adjustment and superior corrosion resistance. They are ideal for high-purity and aggressive fluid applications, ensuring accurate control.

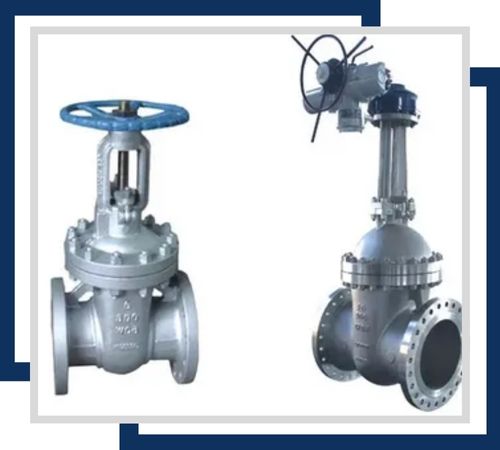

Stainless Steel 316L gate valves, ranging from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Their low carbon content makes them suitable for use in high-purity and demanding industrial environments.
For total transparency and quality control, we offer a full suite of documentation in addition to our Stainless Steel 316L Valves. This includes a commercial invoice, packing list, heat treatment chart, fumigation certificate, and quality assurance plan. We also provide an NABL-approved lab test report. In addition to these, we offer an MTC as per EN 10204/3.1b, a PMI Test Certificate, a 100% radiography test report, and a Third Party Inspection Certificate to ensure the quality of our product further. Our thorough documentation demonstrates our dedication to excellence and client satisfaction.
Stainless Steel 316L valves are widely used in industries requiring high corrosion resistance. Common applications include chemical processing, marine environments, food and beverage processing, pharmaceuticals and oil and gas industries. They are ideal for handling aggressive chemicals, seawater, and high-temperature fluids. These valves are also used in water treatment plants, heat exchangers and HVAC systems due to their excellent resistance to pitting and crevice corrosion. The low carbon content makes them suitable for welding in high-stress applications.
